Biomarkers for lipid oxidation. oxidative stress
Anti hexanoyl-Lysine adduct monoclonal antibody.
Suitable for immunohistocheistry and ELISA. For research use only.
A new biomarker for lipid peroxidation
Oxidative damage of lipids caused by reactive oxygen species (ROS) play an important role in some diseases, lesion of cell functions and aging. Aldehydes such as malondi-aldehyde (MDA) and 4-hydroxy-2-nonenal (4-HNE) have been reported as one of the advanced lipid peroxidation products. But recently in the earlier stage of lipid peroxidation, 13-hydroperoxyoctadecanoic acid (13-HPODE) is found to be covalently bound to proteins1). Hexanoyl-Lysine adduct (HEL) is a novel lipid hydroperoxide-modified lysine residues. HEL is formed by oxidative modification by oxidized omega-6 fatty acids such as linoleic acid or arachidonic acid. This monoclonal antibody (clone 5H4)is spesific for proteins and peptides containing HEL. Suitable for HEL detection by immunohistochemistry and western blotting.

Cisplatin-treated rat kidney.
(Dr. Sugiyama, Tottori Univ.)

Detection of HEL at Human atherosclerotic lesions.
(Dr. Naito)
Clone #: 5F12
Subclass: IgG1 kappa
Antigen: N epsilon hexanoyl-Keyhole limpet hemocyanin (HEL-KLH)

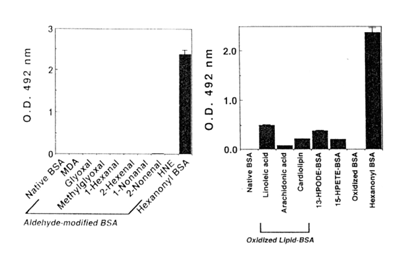

Specificity: Specific to Hexanoyl-Lys adducts.
Form: Lyophilized power. Containing 10mM PBS(pH7.4), 5% sucrose, 1% BSA and 0.05% Procline 950. 100 µg/mL of IgG.
Application: Immunohistochemistry
(Recommended antibody concentration is 2 µg/mL on paraformaldehyde fixed tissue), and ELISA
Storage: Less than -20°C
1) Yoji Kato, Yoko Mori, Yuko Makino, Yasujiro Morimitsu, Sadayuki Hiroi, Toshitsugu Ishikawa, Toshihiko Osawa, Formation of N epsilon-(hexanonyl) lysine in protein exposed to lipid hydroperoxide. J Biol Chem 274(29), p20406-20414 (1999)
Identification of HEL, which is lysine adduct of 13-HPODE.
2) Kato Y, Miyake Y, Yamamoto K, Shimomura Y, Ochi H, Mori Y, Osawa T, Preparation of a monoclonal antibody to N(epsilon)-(Hexanonyl)lysine: application to the evaluation of protective effects of flavonoid supplementation against exercise-induced oxidative stress in rat skeletal muscle. Biochem Biophys Res Commun 274(2),p389-393(2000)
Development and characterization of anti HEL monoclonal antibody.
3) Fukuchi Y, Miura Y, Nabeno Y, Kato Y, Osawa T, Naito M, Immunohistochemical detection of oxidative stress biomarkers, dityrosine and N(epsilon)-(hexanoyl)lysine, and C-reactive protein in rabbit atherosclerotic lesions. J Atheroscler Thromb 15(4)p185-192(2008)
Application to rabbit atherosclerotic lesions.
4) Maeda R, Noiri E, Isobe H, Homma T, Tanaka T, Negishi K, Doi K, Fujita T, Nakamura E, A water-soluble fullerene vesicle alleviates angiotensin II-induced oxidative stress in human umbilical venous endothelial cells. Hypertens Res 31(1)p141-151(2008)
Application to cultured cells (HUVECs).
5) Sango K, Yanagisawa H, Kato K, Kato N, Hirooka H, Watabe K: Differential Effects of High Glucose and Methylglyoxal on Viability and Polyol Metabolism in Immortalized Adult Mouse Schwann Cells. Open Diabetes J. 1, p1-11(2008)
Application to cultured cell from mouse.
Product name Code Specifications Application NOTICE
Anti HEL monoclonal antibody(clone 5F12) MHL-021P 20 µg of IgG Immunohistochemistry Current product
Anti HEL monoclonal antibody(clone 5H4) MHL-020P 20 µg of IgG Immunohistochemistry Discontinued

Made in Japan.

The clone of anti HEL monoclonal antibody has been changed from 5H4 (code. MHL-020P) to 5F12 (code. MHL-021P). If you need old product, please contact our technical support.

Related products:    Hexanoyl-Lys ELISA kit
Ordering Information
Instruction manual (PDF) Immunohistochemical procedure Technical information
Comparison of clone 5F12 and 5H4 (PDF)
[NOTICE]: Our products are for RESEARCH USE ONLY. Not for diagnostic, medical or other use.
